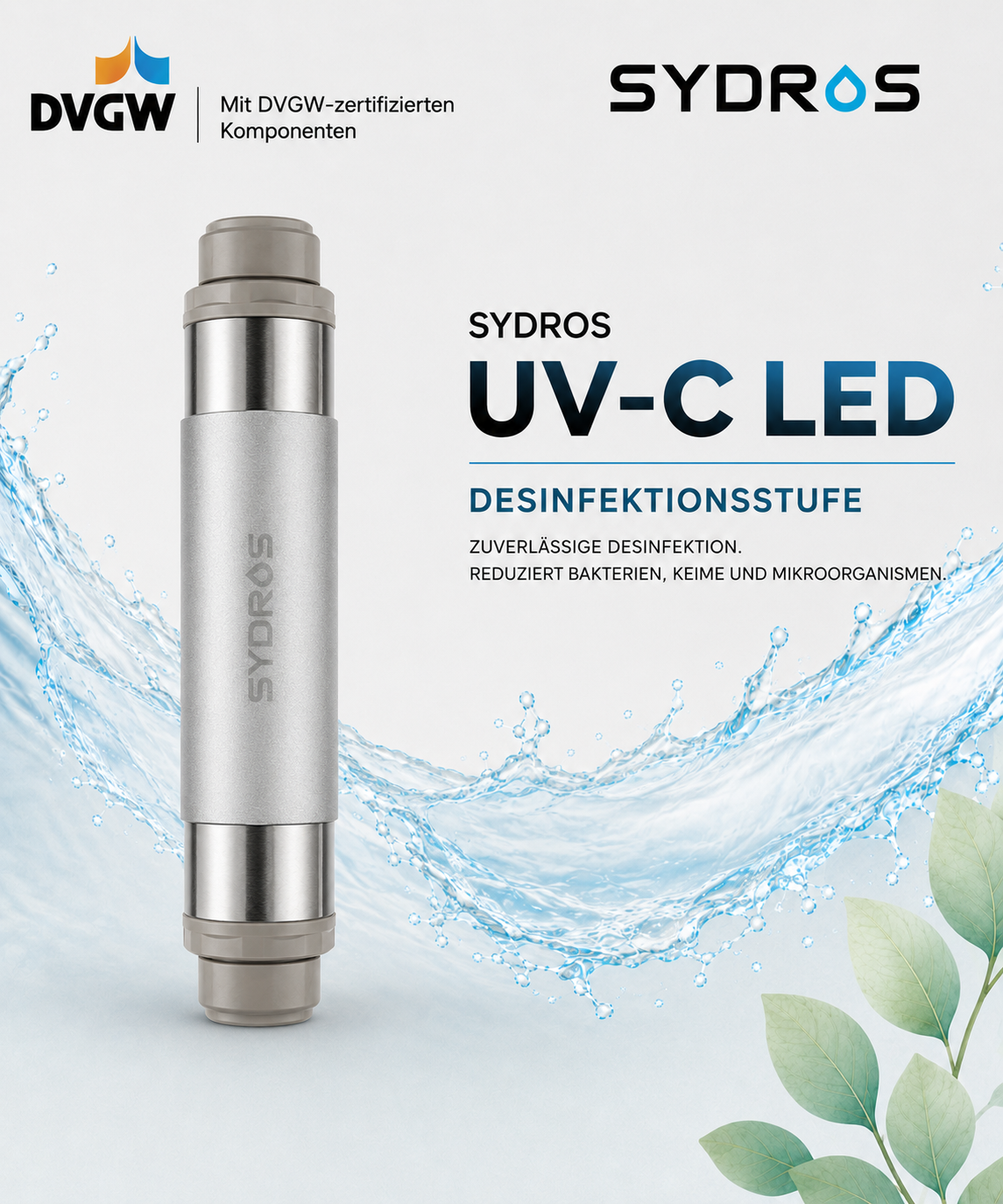

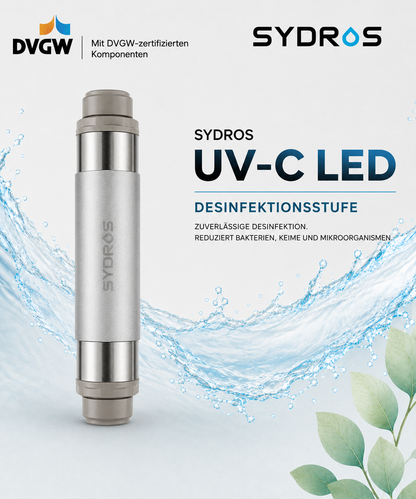

Sydros UV-C LED lamp for all common water filters or as a stand-alone filter to reduce bacterial cultures

SYDROS UV-C LED - Safe, clear water flow

Disinfection without chemicals – maximum protection for your family

The SYDROS UV light uses modern UV-C LED technology (260–280 nm) to reliably neutralize bacteria, viruses and germs in the water flow – without additives and without changing the taste.

Designed for households that value safety, durability, and quality . Ideal as a complement to reverse osmosis and drinking water filters or faucets and dispensers.

• Health first: UV-C destroys the DNA of microorganisms – without any chemicals.
• Sustainable & low-maintenance: No cartridge changes, no plastic waste.
• Efficient in everyday life: Automatic start via flow sensor (optional) – power only when water flows.

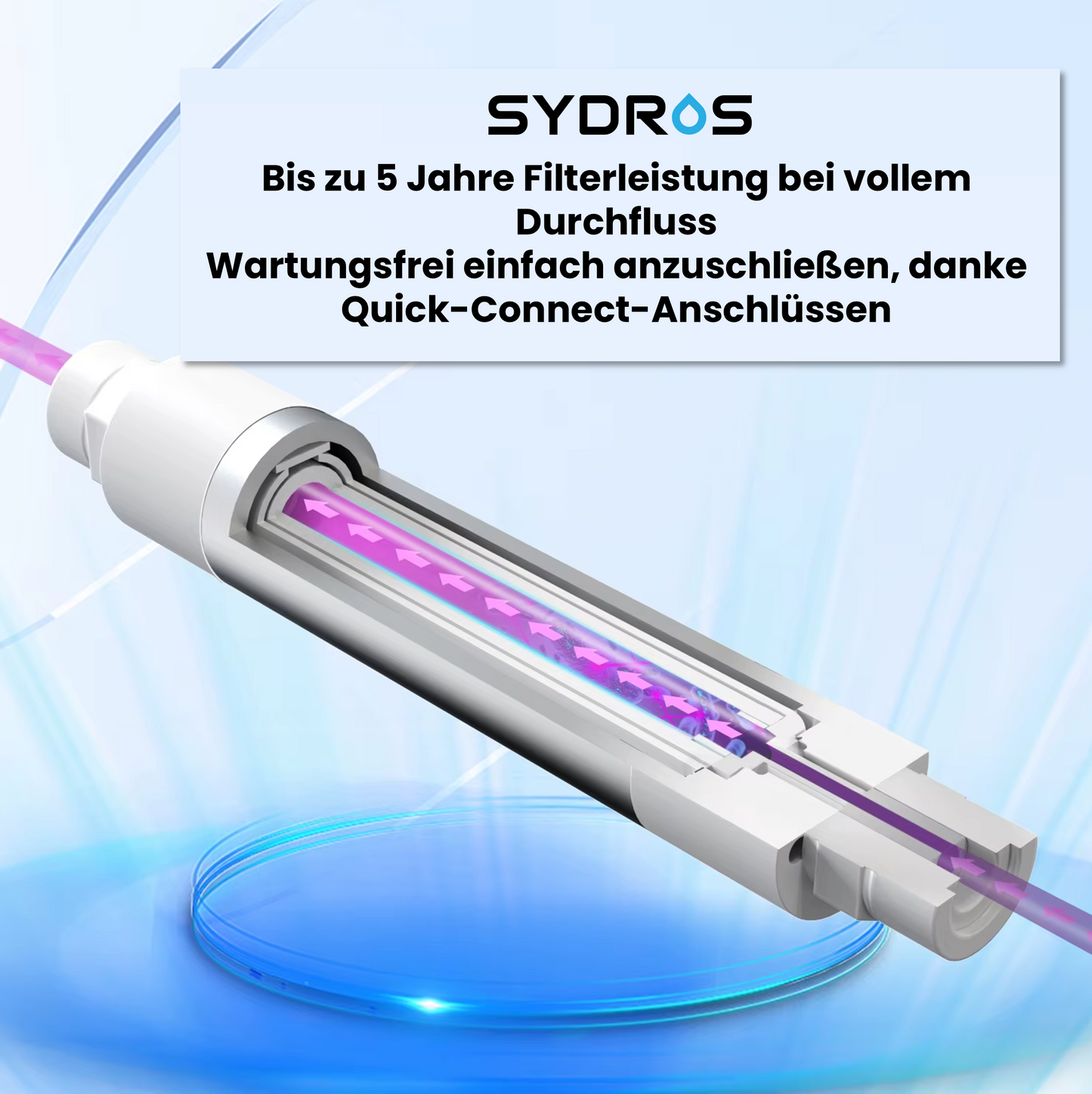

Technology & principle of action

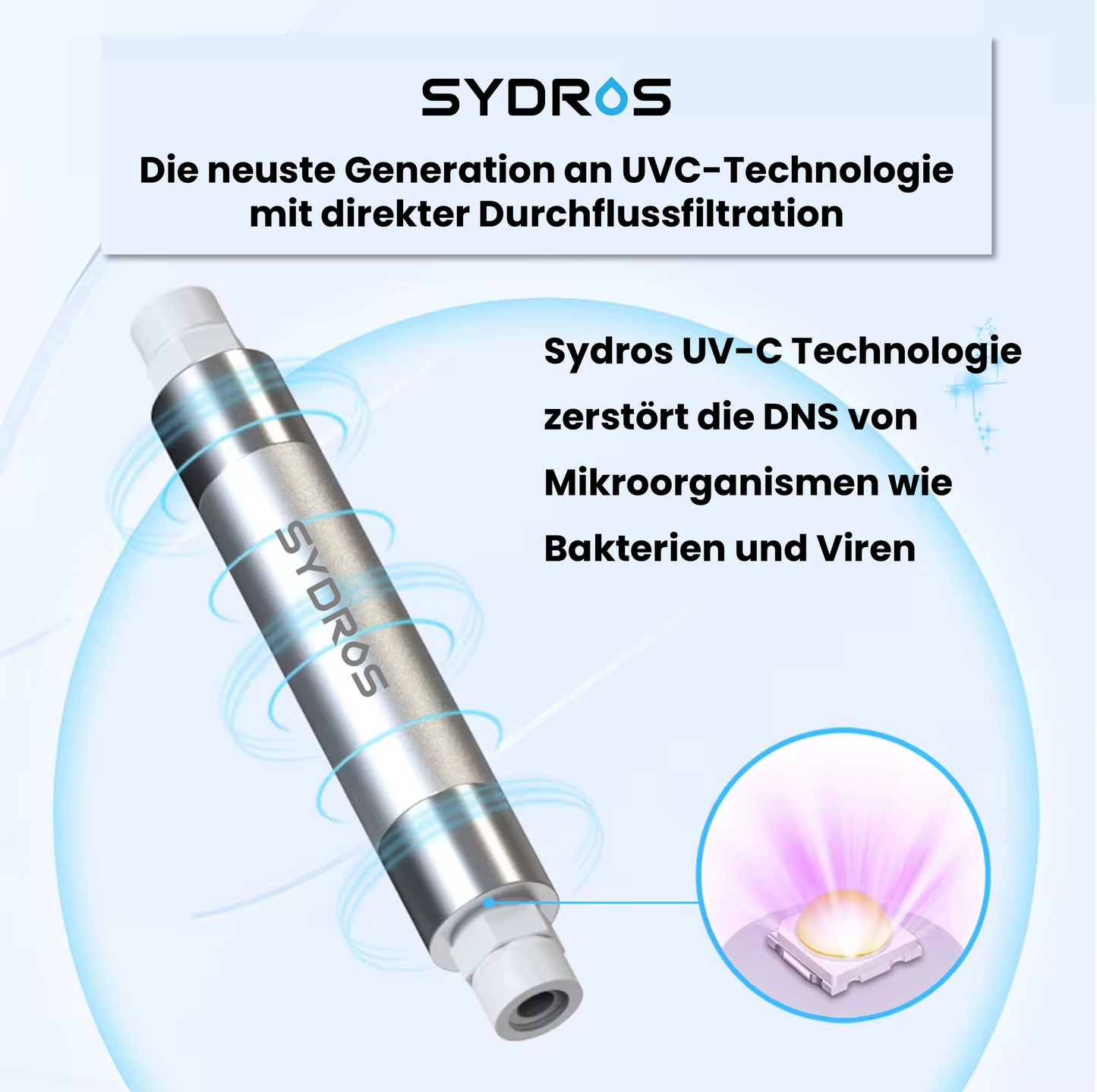

✔ UV-C LEDs 260–280 nm: Neutralize bacteria and viruses directly in the water flow (no chemicals, no residues).

✔ Direct flow: No contact containers required, therefore compact and tasteless .

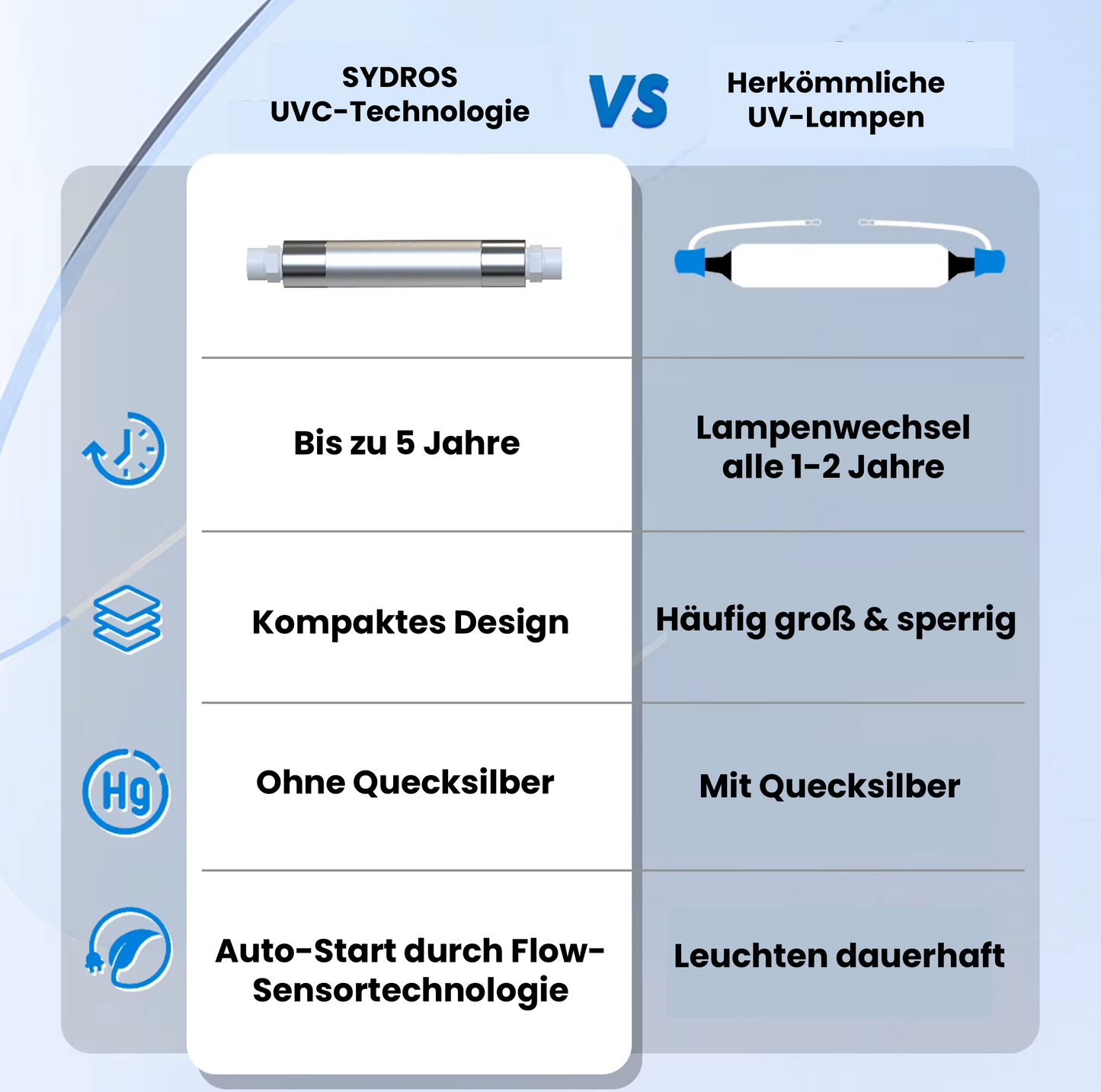

✔ Mercury-free: LED technology – safe, environmentally friendly, instant power.

Maximum safety – for people who want to protect pure water responsibly.

Technical data

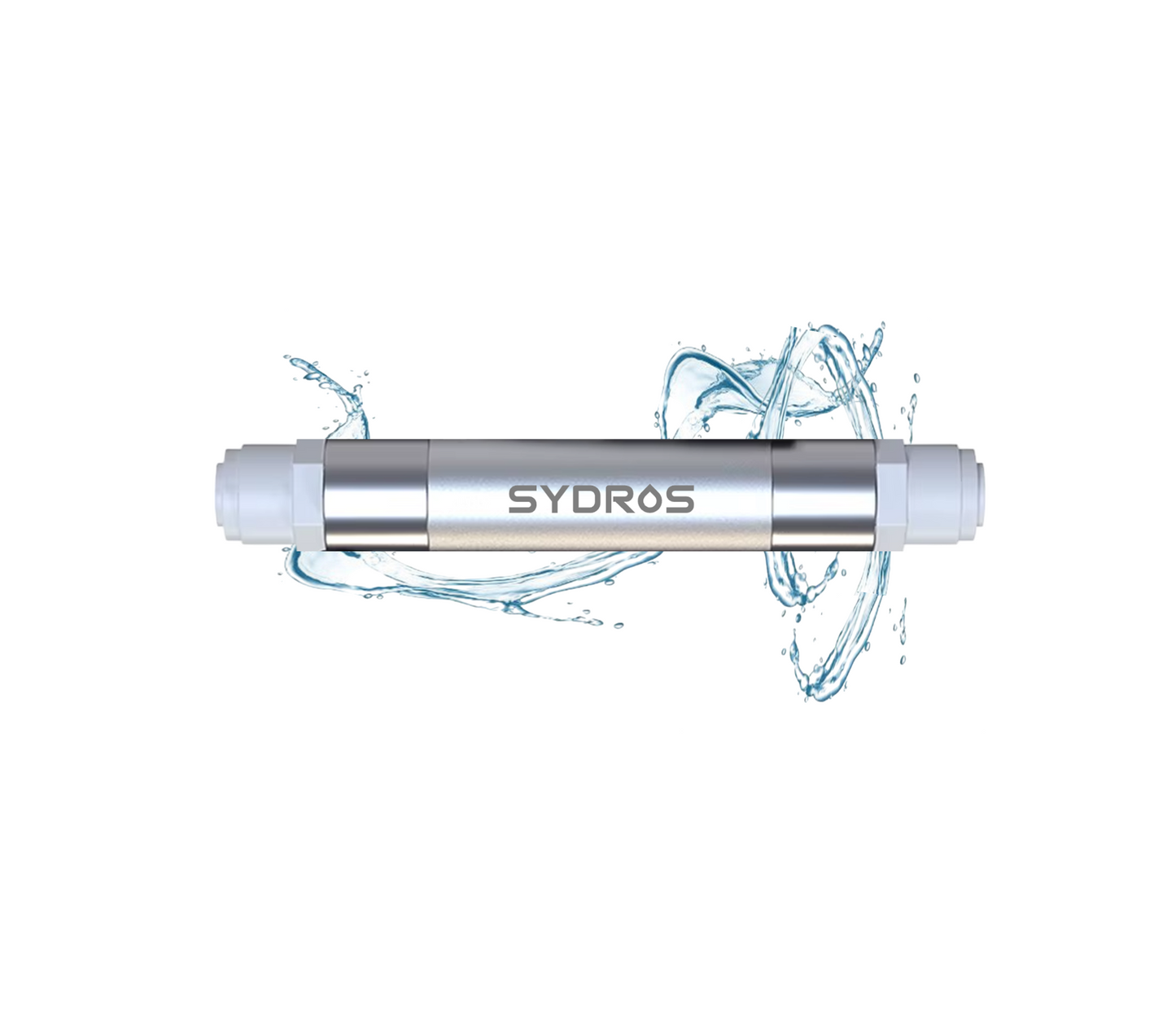

Model: UV-LED Water Sterilizer
Power: 7 W
UV wavelength: 260–280 nm (UV-C LED)
Flow rate: 4–6 L/min
Operating pressure: 0.1–0.4 MPa
Operating temperature: 0–45 °C
Voltage: Input 100–240 V AC / Output 12/24 V DC
Connection: 3/8" PE hose (adapter to 1/4" or 1/2" optionally available)
LED lifespan: approx. 10,000 h
Material: stainless steel case with quartz tube
Mounting: Horizontal or vertical

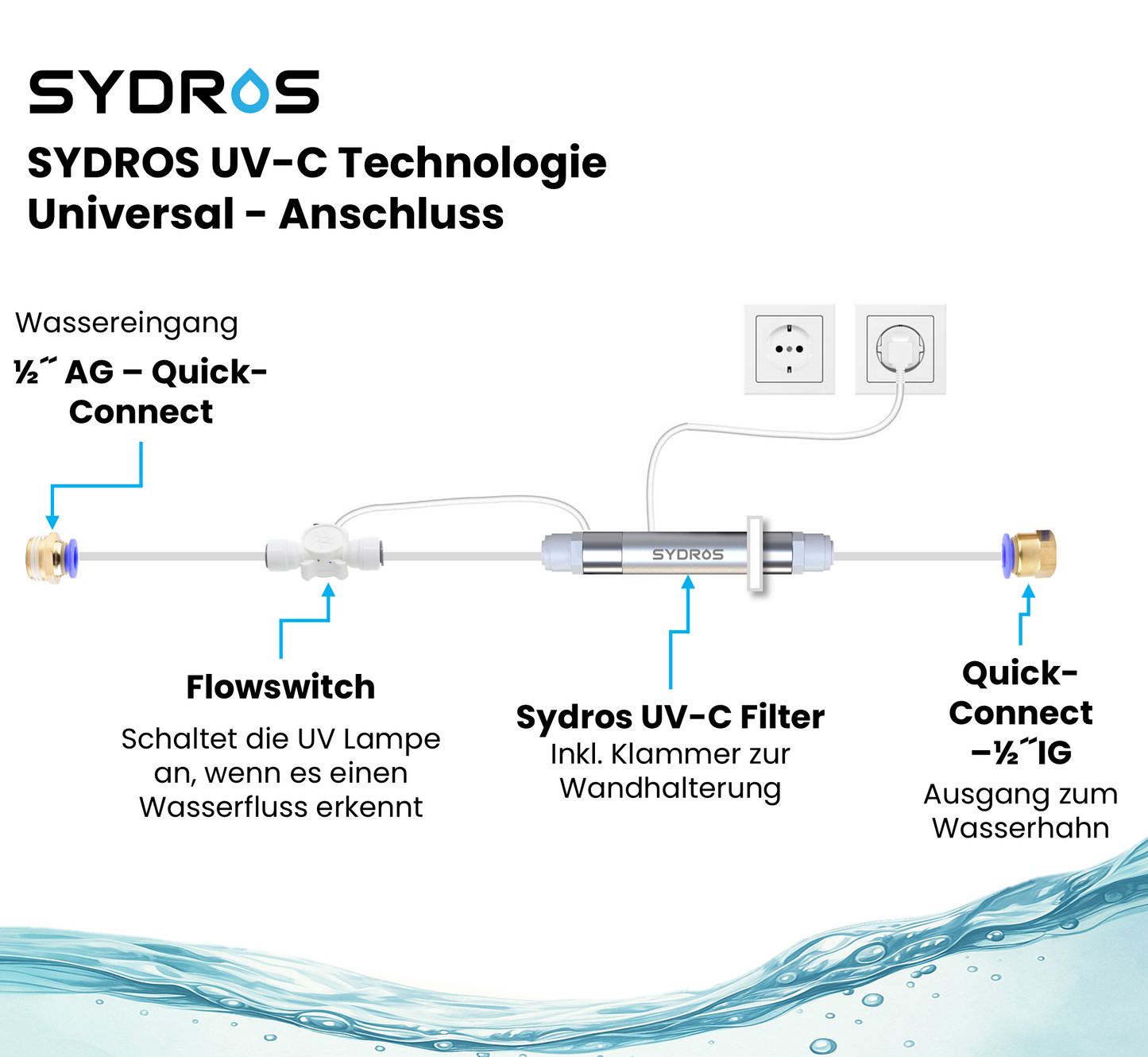

Easy installation & application

• Quickly assembled: Quick-Connect hose system (3/8") – optionally with adapters.

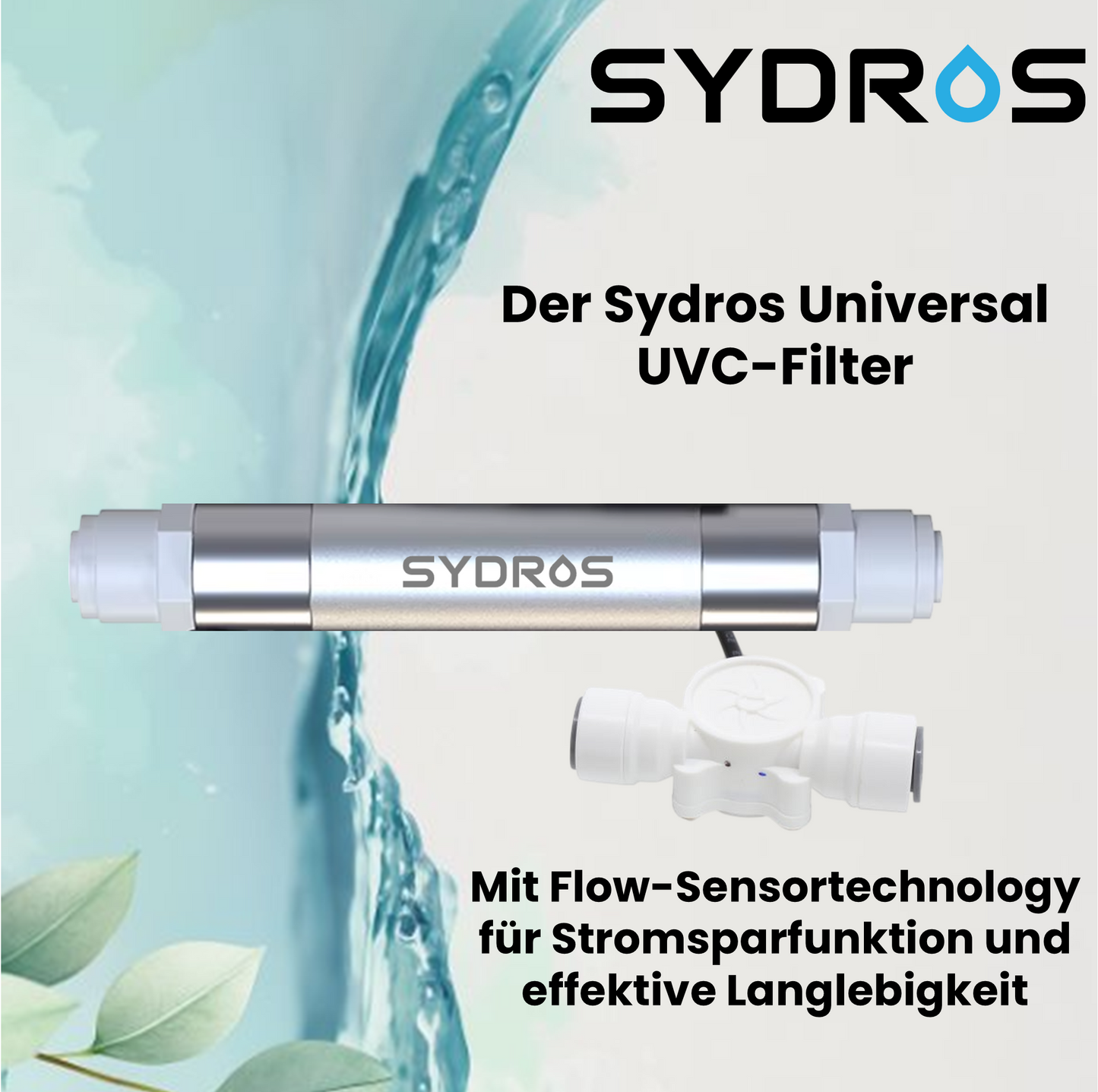

• Automatic start: Flowswitch only switches on the UV LED when water flows (energy saving & longevity).
• Status LED: Green = UV active, Red = fault (please check operation).

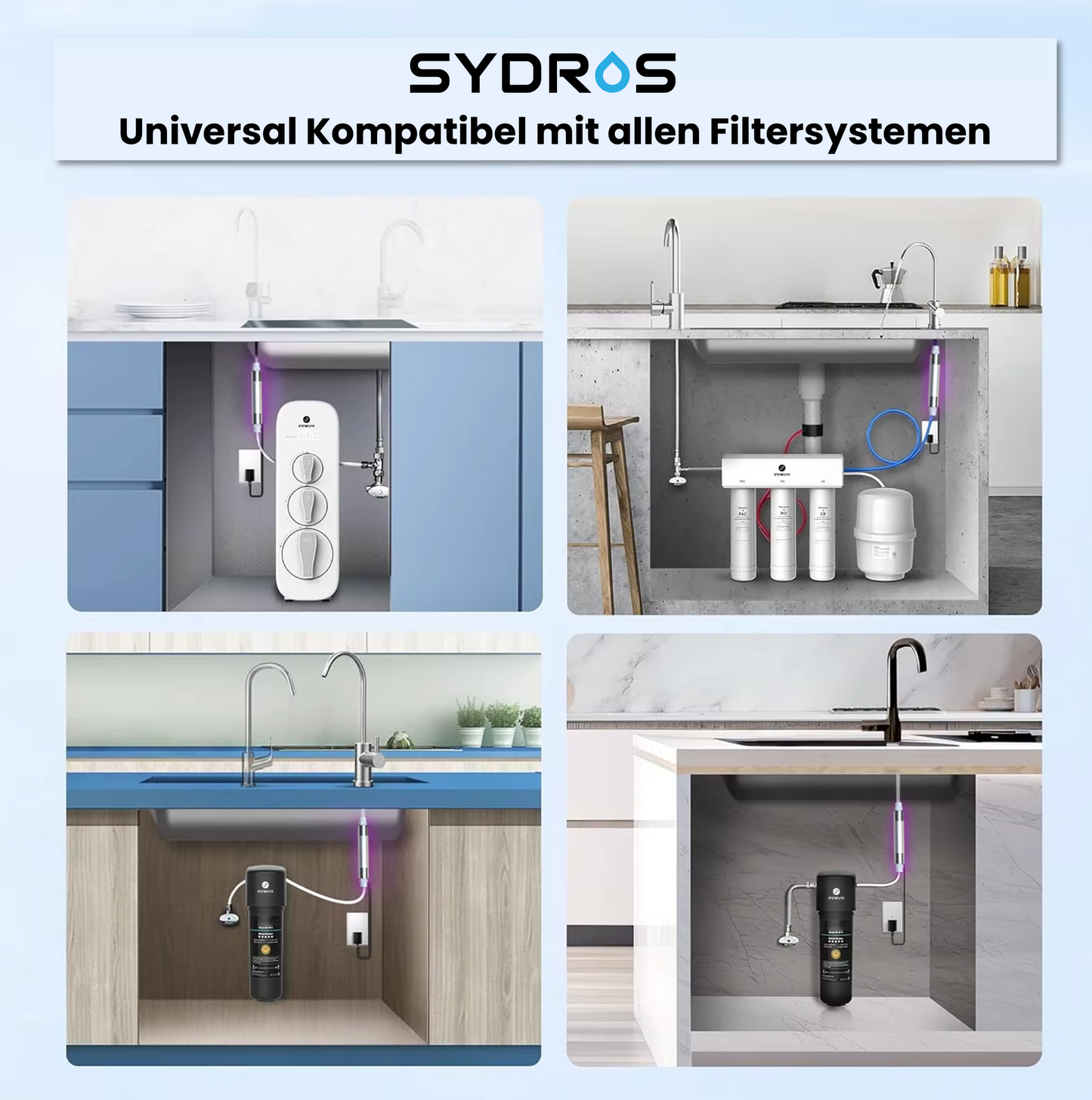

• Integration: After osmosis system, under the sink, at the faucet/dispenser or at the outlet of a filter.
• Note: Operate the device only with water – do not switch it on dry.

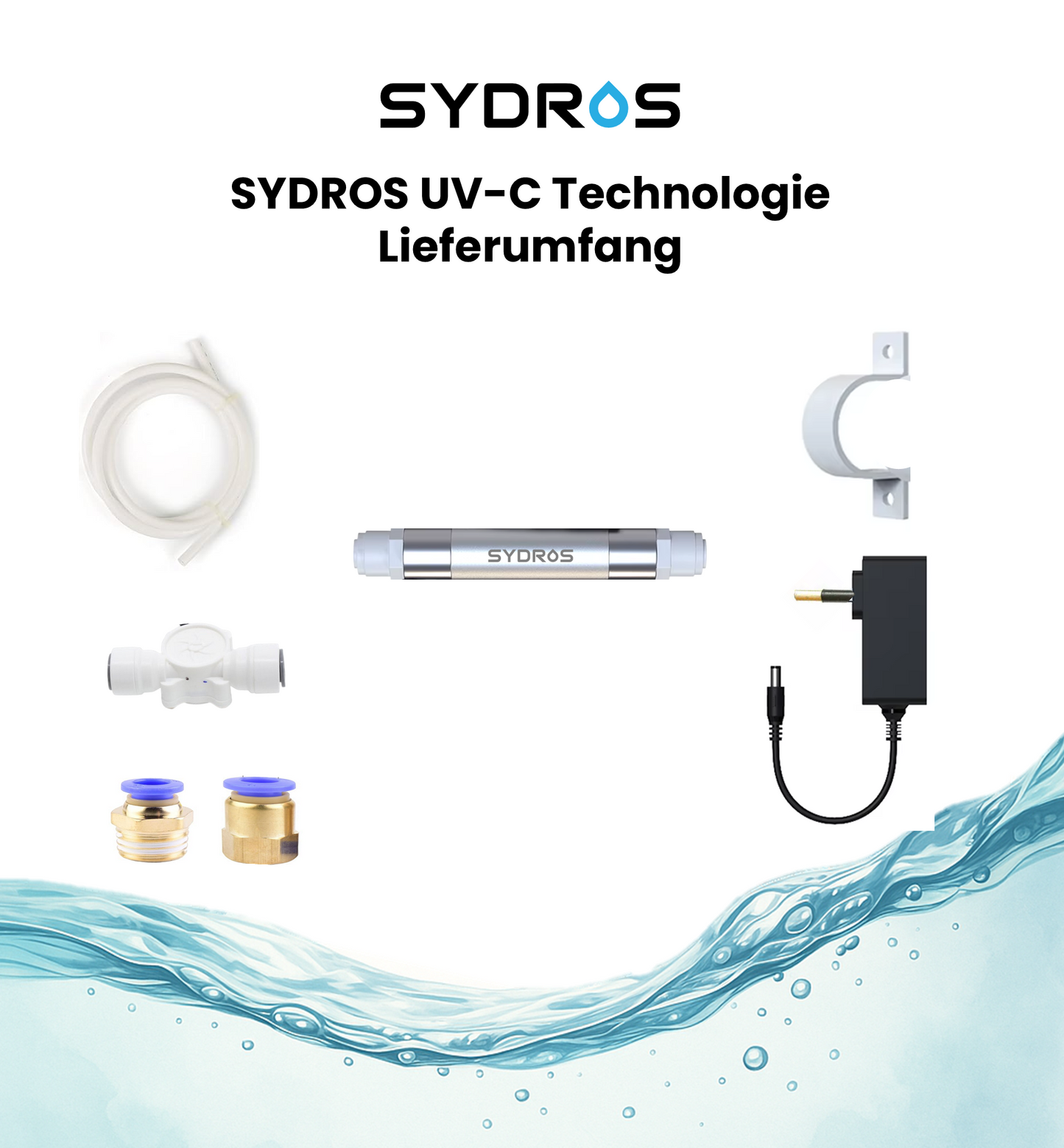

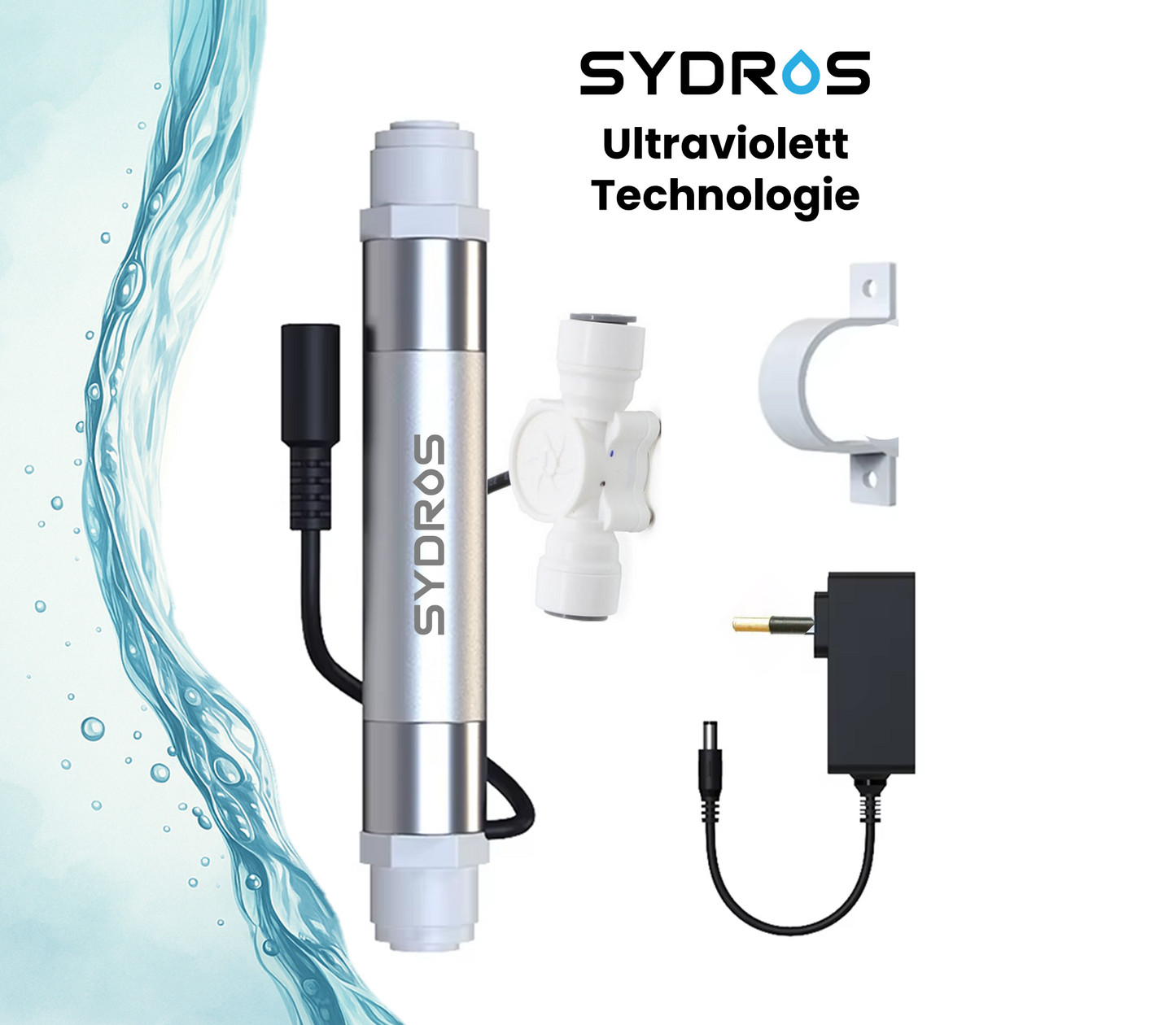

Scope of delivery

1× UV LED sterilizer module (HC-MKDCY-6)
1× DC power supply (12/24 V)
1× DC base connection cable (5.5 × 2.1 mm)
1× Water flow switch (optional)
1× User manual (DE & EN)

Conformity, Safety & Care

Developed in Germany and manufactured to high quality standards. Complies with the EU General Product Safety Directive (2001/95/EC). Do not stare into the UV light during operation. Protect from frost, direct sunlight, and high humidity. Check seals and connections regularly.

Important information: Use only in closed water systems. Do not disassemble during operation. In case of malfunction, disconnect the water and power supply and check the installation.

Conclusion: Clear decision for security

With the SYDROS UV-C LED sterilizer, you gain reliable protection and peace of mind: chemical-free, low-maintenance, and durable . The perfect addition for households that act responsibly and want to enjoy consistently crystal-clear water .
